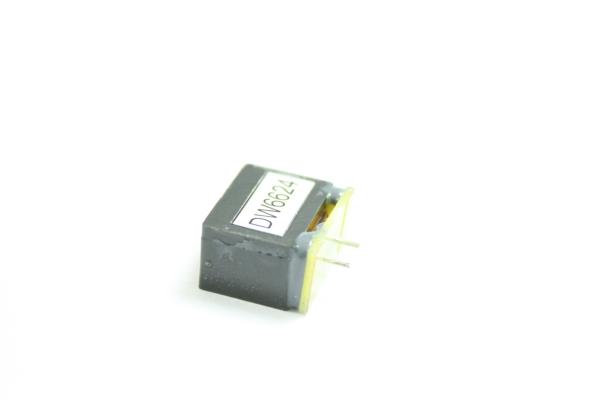

EIR181013 DIP Power Inductors Manufacture Customized DW6624
1. The product contain no lead and also support lead-free.
2. This type is the best for energy-saving in the low DC resistance.
3. Lead free RoHS compliant
4. High power, low distortion.
5. Low distortion at the time large output by high DC current.
6. Adopts the high quality and imported copper wire, the copper wire could endure high temperature.
7. Wire diameter:2.0mm, Core diameter: 3mm

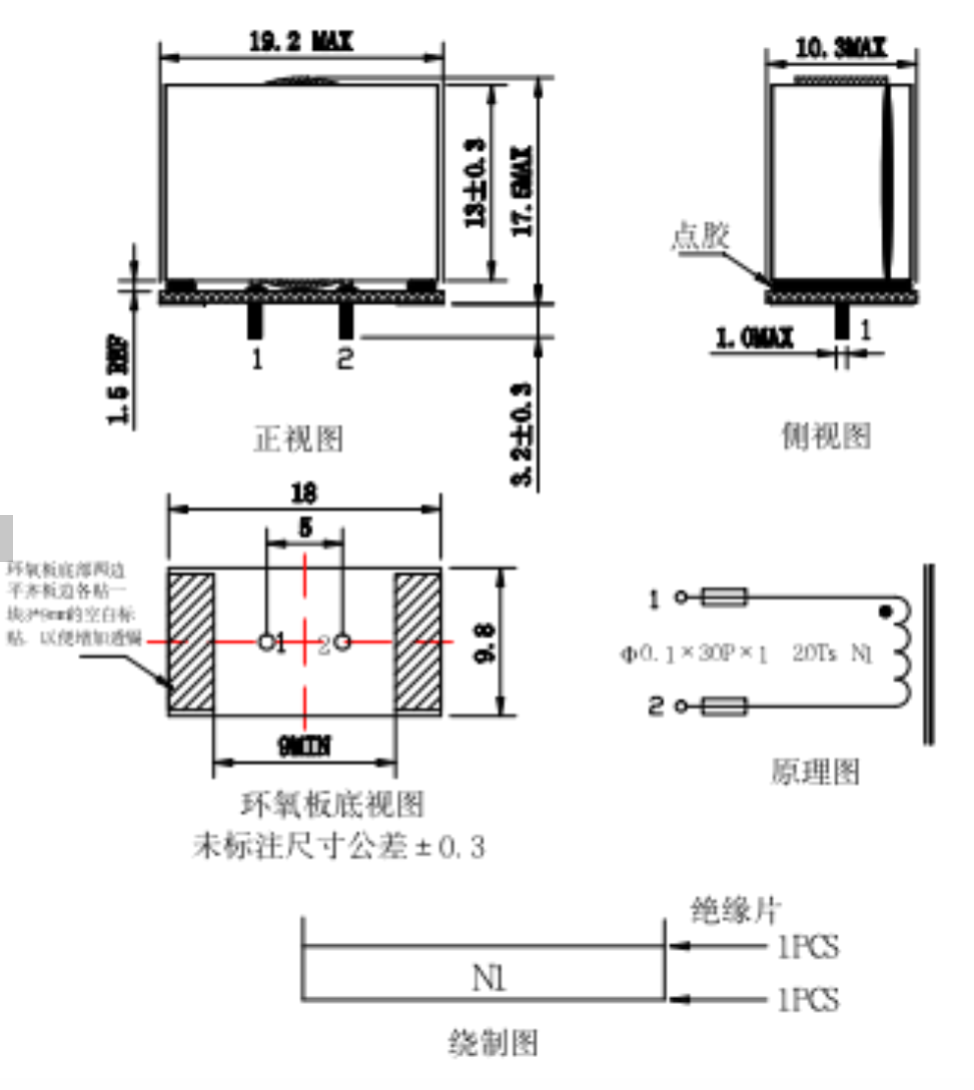

1. Drawing (Unit: mm)
2. Environmental Conditions
- Storage temperature: -10-40℃
- Ambient temperature: -40 -- 85℃
- Operating temperature: 130℃MAX
- Relative humidity: 5%-95%
- Long-term durability experiment.
3. Process of Winding
| Winding Item | Winding Name | Start Pin Position | End Pin Position | Wire & Description | TS | Layer number of tape | Winding requirement |
| 1 | N1 | 1 | 2 | ￠0.1mm×30(USTC)*1 | 20 | 2 | Tightly wind |
4. Electrical Characteristic
| Item | Unit | Test Terminal | Test Condition | MIN | NOR | MAX |
| Inductance Test | µH | 1-2 | 100KHz,0.3V, Ser | 18.5 | 20 | 21.5 |
| Q Value | / | 1-2 | 100KHz,0.3V, Ser | 60 | / | / |
| Resistance Strength | mA | N1——Core | 500Vac,60s | / | / | 1 |
| Direct Current Resistance | mΩ | 1-2 | 25℃ | / | / | 75 |
